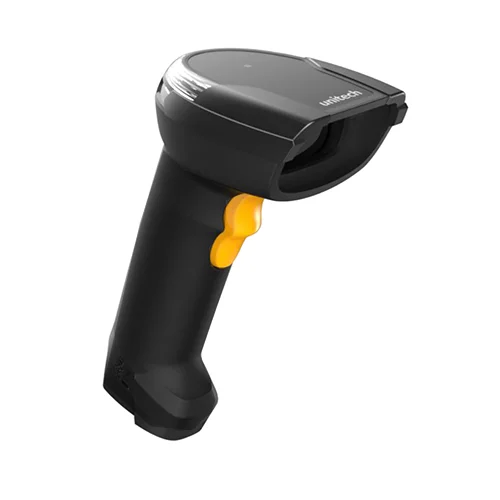

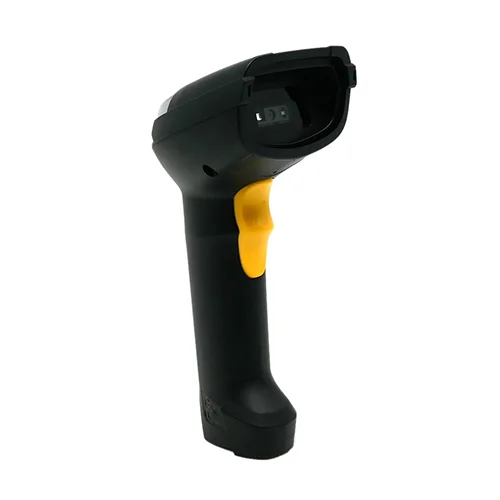

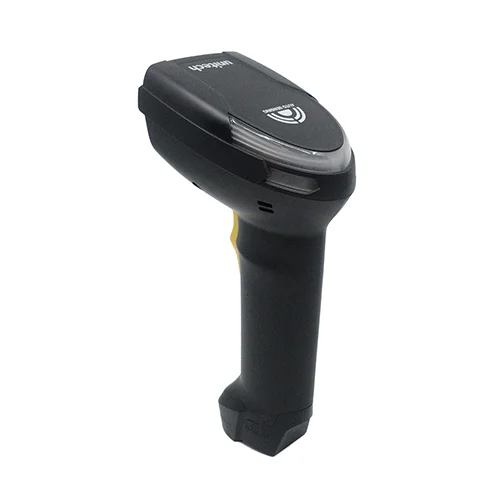

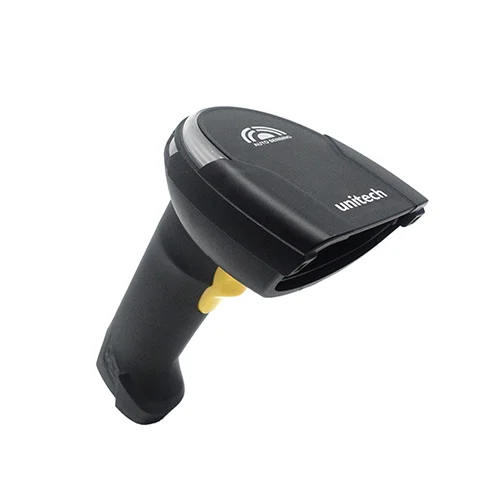

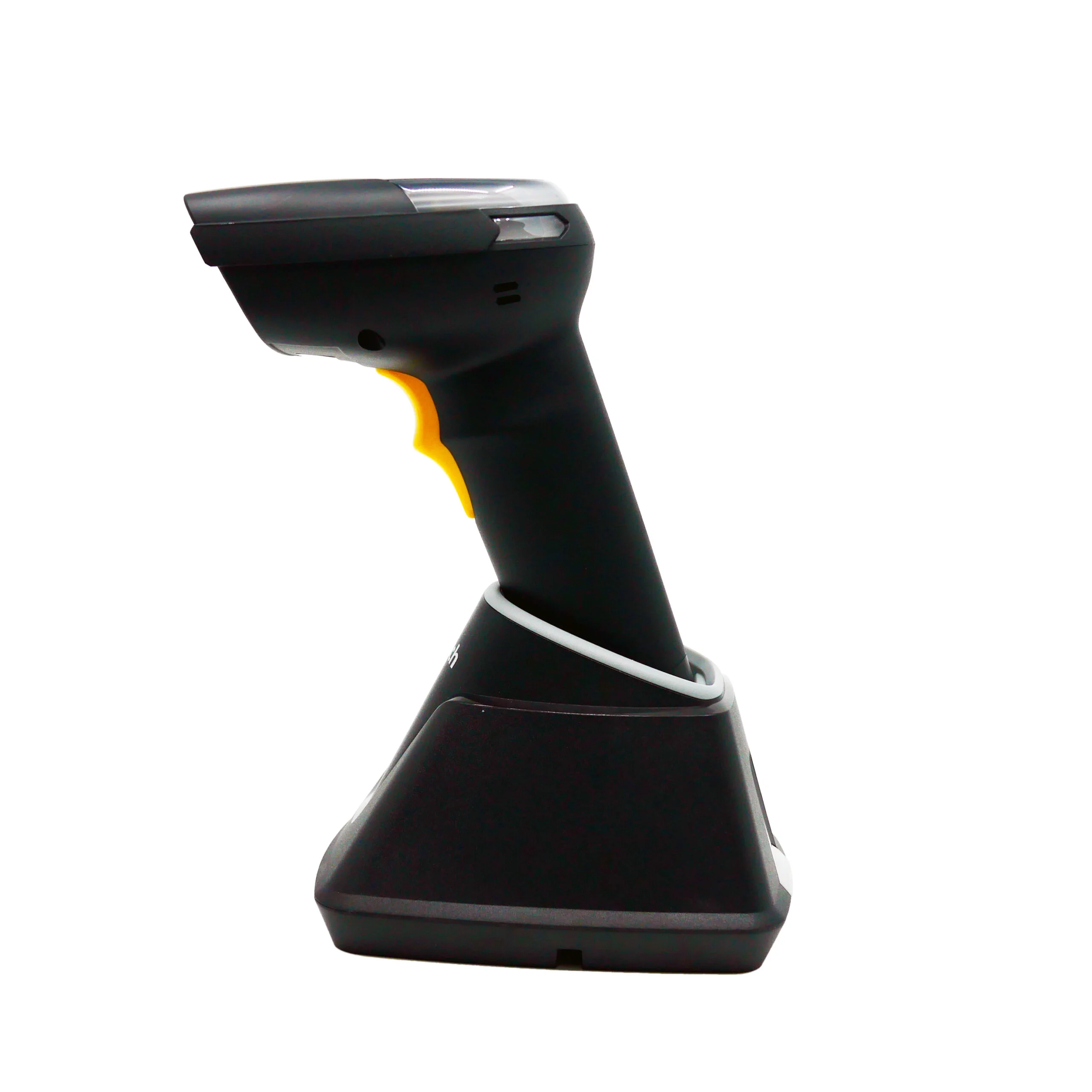

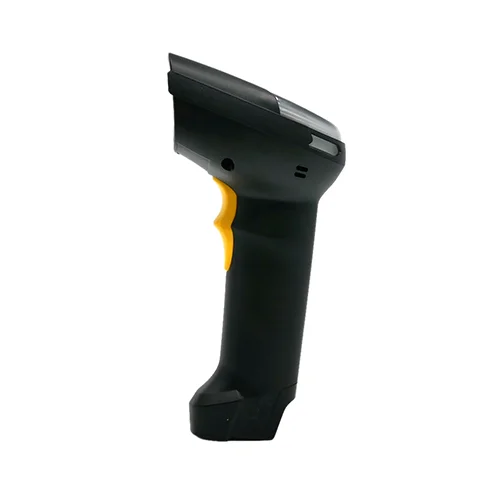

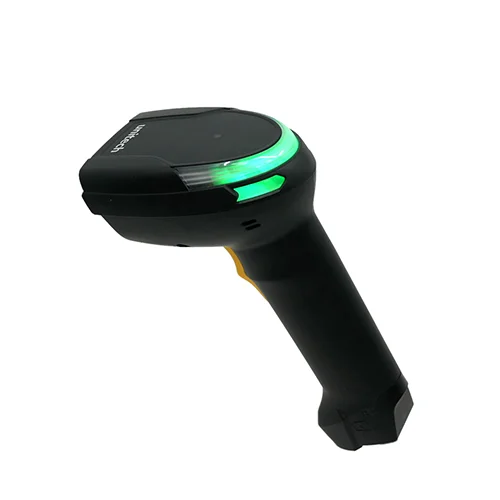

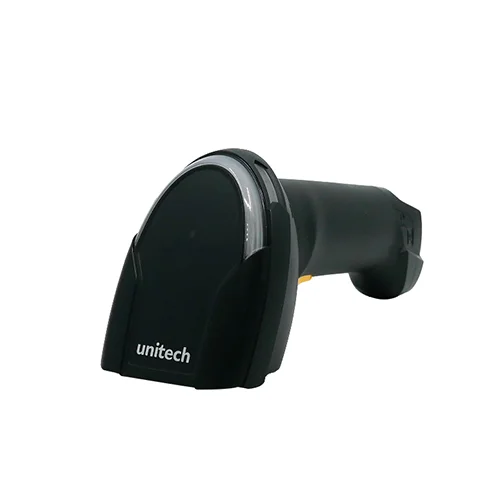

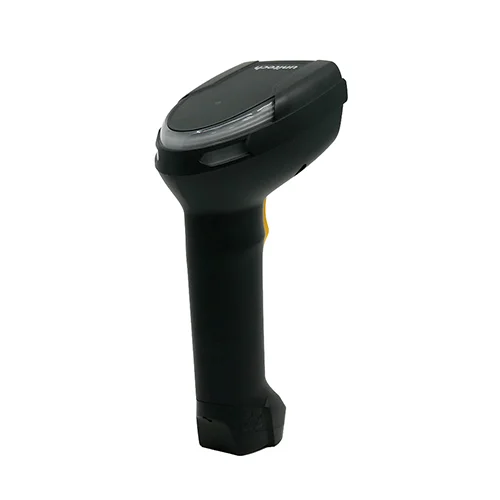

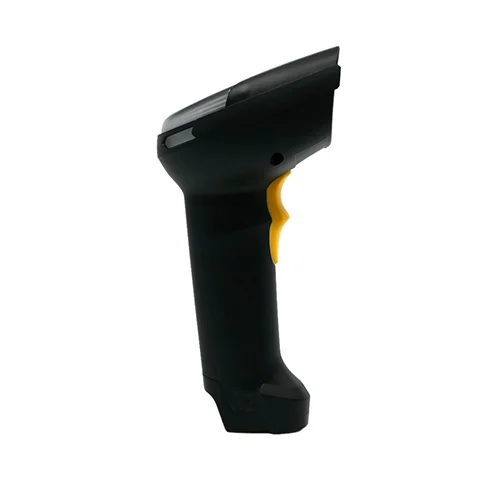

MS852B HC Plus Bluetooth 2D barcode scanner


-

MS852B+, HC, Bluetooth, 2D (Honeywell N6703 HD), USB, white color, with cradle and USB cable, Health Care Version

$120.00

Compare

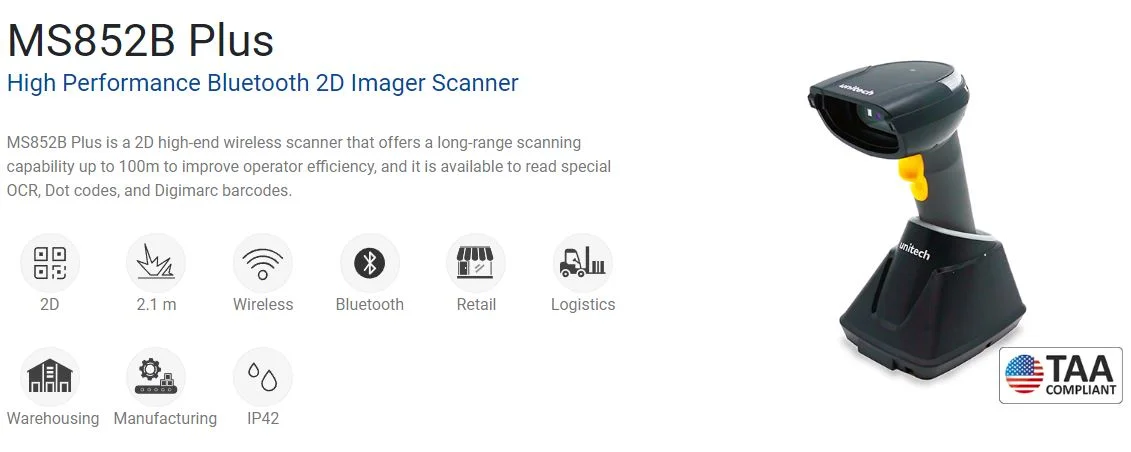

MB852b Plus

Delivering the superior barcode scanning performance and mobility wireless design, the new unitech MS852B Plus Bluetooth 2D barcode scanner is suitable for a wide range of markets and applications, from logistics, inventory management in retail warehousing to industrial purpose manufacturing scanning.

Features

•  Megapixel barcode sensor that enhances the maximum compatibility
•  Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
•  Support OCR, Dot codes, and Digimarc barcodes
•  Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)
•  Wireless transmission range up to 100m in the line of open sight.
•  Long battery life up to 25 hours per a fully charged battery
•  Durable design: IP42 and 2.1m drop spec
•  Auto Bluetooth pairing / auto switch between trigger & presentation mode with cradle

SKU: MS852-ZUBL0C-HG Categories: ,
Weight 0.213 kg
Dimensions 8.78 × 7.16 × 17.77 cm
Model

System

  • Memory5MB (590,000 barcodes)
  • KeyTrigger Key

Optical & Performance

  • Sensor1280 X 800 global shutter
  • Aiming ElementRed laser or 528 nm visible green LED
  • IlluminationWhite or Red LED
  • Ambient Light100,000 Lux (Sunlight)
  • Skew Angle±60°
  • Pitch Angle Sensor±60°
  • Roll Angle0 – 360°
  • Optical Resolution1D 3mil/ 0.075mm
  • Printing Contrast ScaleMinimum 20%
  • Depth of Field(DOF PCS=80%)
    SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
    13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm
    5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm
    10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm
    20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm
    15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm
    10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm
    6,7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm
    15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm

Communication

  • RadioBluetooth LE® V4.2
    & Bluetooth® 2.1+EDR, Class 1
    Dual mode
  • Wireless Coverage100m ( line of sight)
  • ProtocolSerial Port and HID profiles
  • Host Interface supportedUSB, RS232
  • Memory Buffer7MB for batch mode/ 20KB for auto mode

Mechanical

  • Dimension8 L x 71.6 W x 177.7 H (mm)
  • Weight213g (without cradle)
  • Trigger Switch Life10 million times
  • Cradle Dimension6 L x 88.7 W x 86.0 H (mm)

Symbologies

  • 1D BarcodesCodabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar,
    UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39
  • 2D Barcodes2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
    2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
    Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
  • Special BarcodesSupport OCR, DotCode, and Digimarc barcodes
  • Data FormattingPrefix, Suffix, Code ID, Reformatting Date

Electrical

  • IndicatorLED & Beeper & Vibrator
  • Battery TypeRechargeable and replaceable battery pack.
  • Battery Capacity2850mAh
  • Battery Charging time<6.5 hours
  • Operating Time>25 hours
    Up to 60,000 scans at 1 scan/per second

Environmental

  • ESD ProtectionFunctional after 8K Contact and 15K Air
  • Mechanical Shock1M onto concrete (scanner only)
  • Operating Temperature-10°C to 50°C (14°F to 122°F)
  • Storage Temperature-40°C to +70°C (-40°F to +158°F)
  • Relative Humidity95% non-condensing
  • IP RatingIP42

Accessories

Items

■ USB cable (PN# 1550-905890G)
■ RS232 cable (PN# 1550-905891G)
■ USB type C cable (PN# 1550-905892G)
■ 1-slot charging cradle (PN#5 000-900064G)
■ Battery pack (PN# 1400-900055G)
■ Carrying bag (PN#3210-900025G)

Regulatory Approvals

  • Regulatory ApprovalsCE, FCC, BSMI, VCCI, NCC, TELEC, BQB, TAA Compliant

What comes in the box

The standard package contents

■ MS852B Plus Scanner with battery

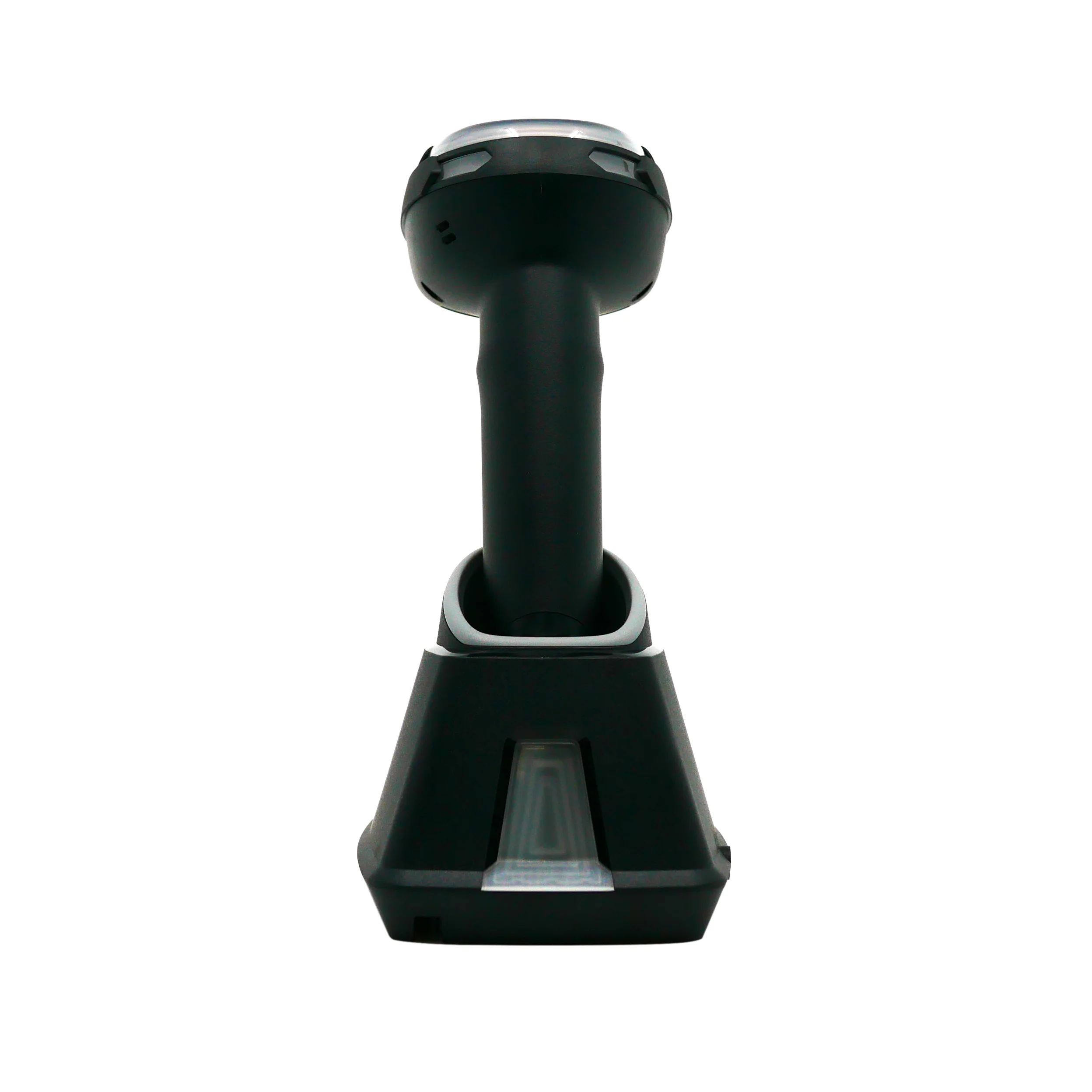

■ Cradle
■ Interface cable

Warranty

  • Hardware Warranty36 months
  • StatementThis product is warranted against defects in workmanship and materials for a period of three year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
