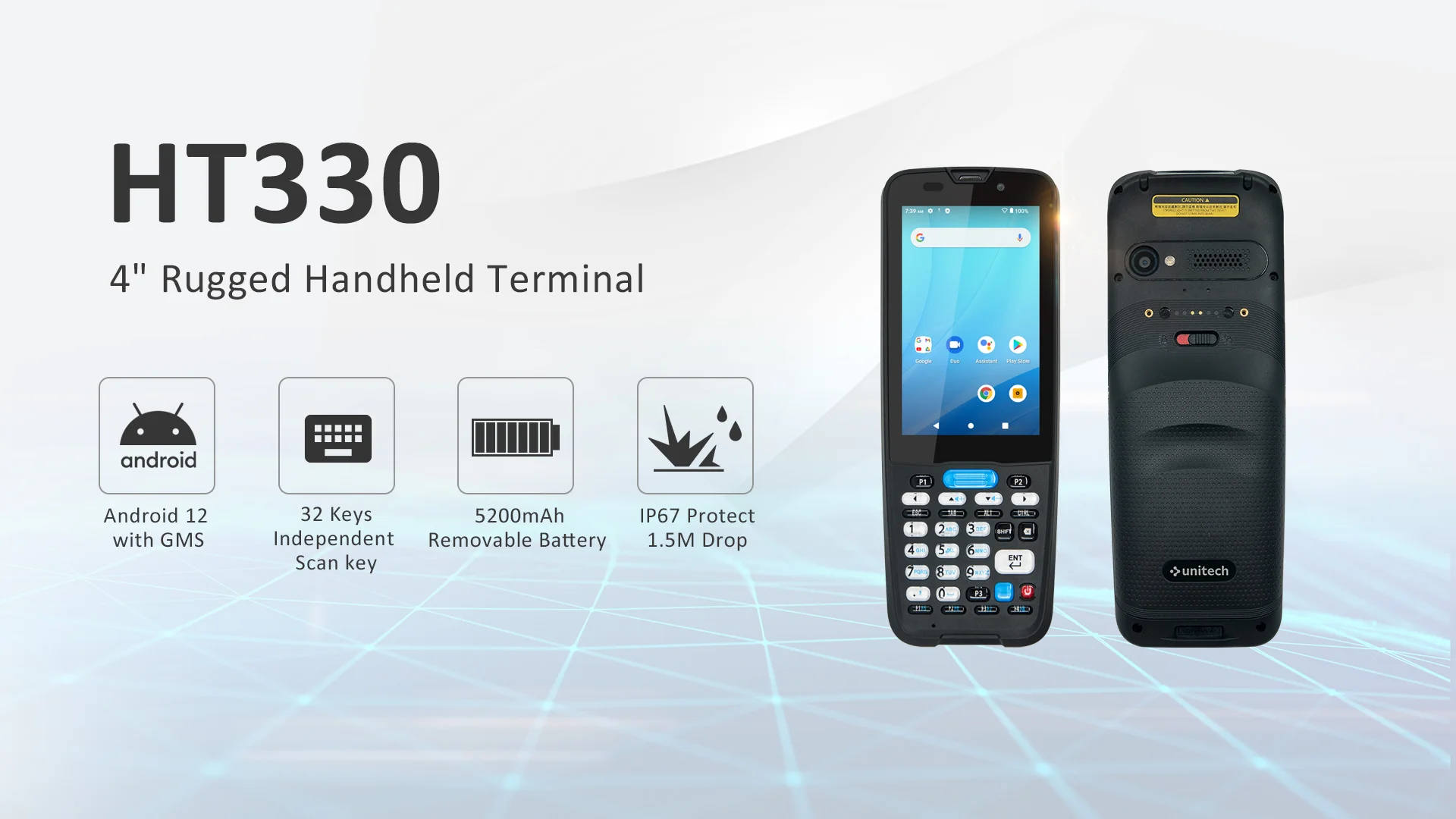

As a reliable work companion, HT330 has been upgraded to the latest Android 12 OS system with GMS certification providing an intuitive and friendly interface to manage data effectively on a 4-inch screen. The removable 5200mAh Lithium-ion battery carries your task for over 20 hours, allowing a full shift to go on. Reaching IP67 enterprise protection and withstanding 1.5 drop makes HT330 a perfect tool to maximize data collection, management, and traceability in nearly every practice of retail, transportation& logistics, manufacturing, and more!
Features • Android 12 OS with GMS certified • Ergonomic one-handed operation • Durable keypad with backlight: 32 keys with 2.5 million lifetime clicks • 5200mAh battery for 20 hours of operation • 1.5M drop-resistant housing (1.8M with bumper) • IP67 protection against water and dust • Support Bluetooth® 5.0 • Support MDM software and utilities such as MoboLink, SOTI, AirWatch, and 42Gears.

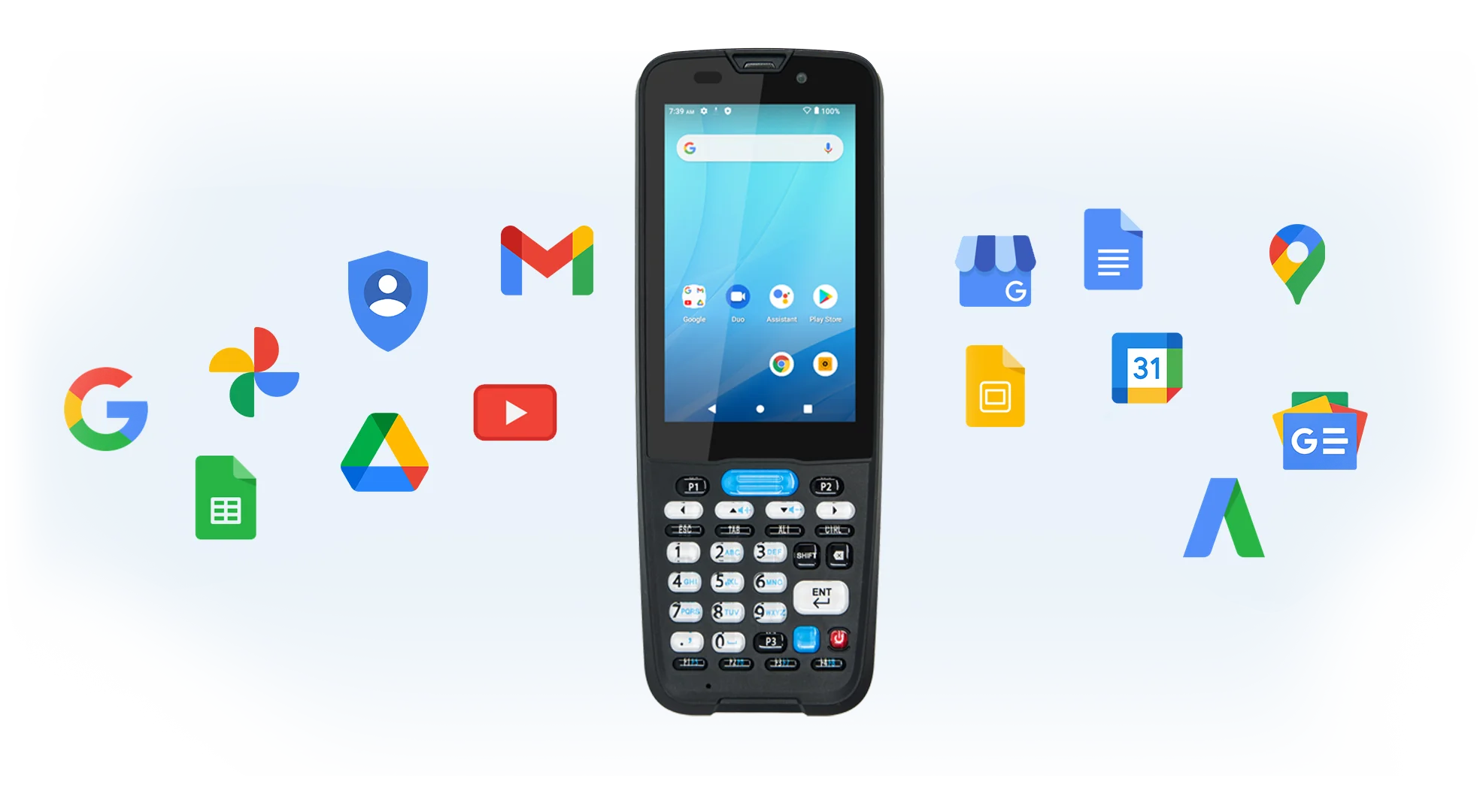

Latest Android 12 with GMS certified
This high-performance HT330 featuring a powerful 2D engine has upgraded to Android 12 OS to empower staff with an easy-scan, simple-check convenience. The GMS certification allows staff to access a set of pre-installed apps and services meant to boost productivity. HT330 is the best choice of optimal data collection terminal for the retail and warehousing field.
Android 12
GMS
Octa-Core
1D/2D
Operation System
Certification
2GHz
Support
Extending Battery Capacity for All Day
A larger battery capacity of HT330 means fewer battery replacements and longer operation time. The removable 5200mAh Lithium-ion battery supports 20 working hours, making it a suitable device for intensive scanning scenarios, like inventory checks. The 3GB RAM/32GB Flash memorystorage undertake a high volume of data even after hours.
5200 mAh
20 Hours
3 GB RAM
295 g
Li-ion Battery
Operation Time
32 GB Flash
Friendly Panel in Rugged Housing

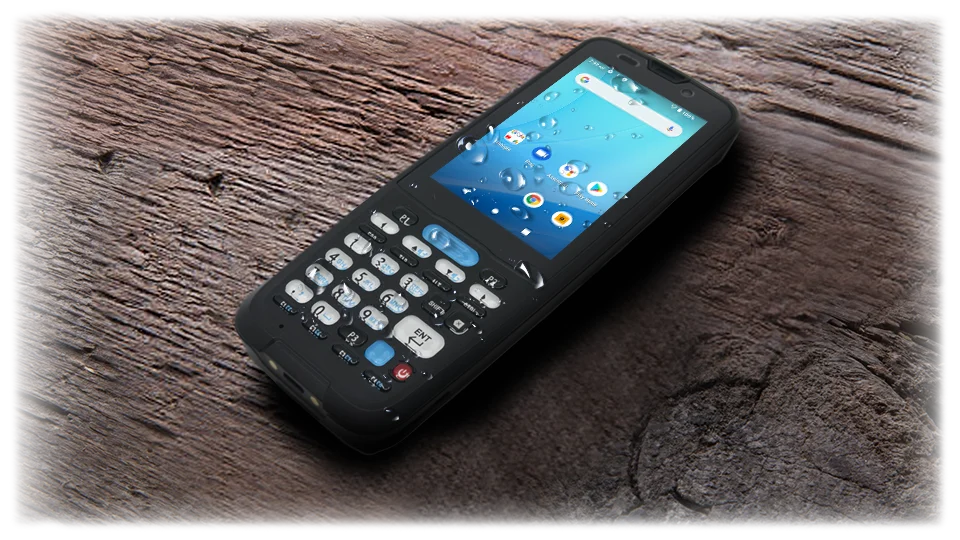

The one-hand terminal combines a 4-inch touchscreen with 32 keys physical keypad, providing a flexible interface to satisfy industries’ requirements. Water-resistant, dust-proof, and enduring drop to 1.5 m, HT330 can handle all demanding environments.
4-inch
32
IP67
One-Hand
Display
Keys
Certification
Operation
Rich and Reliable Wireless Connection
HT330 lays a foundation of instant visibility into what’s happening and being done under 2.4G+5GHz bandwidth. The Bluetooth® 5.0 improves the connectivity of related pairing devices, and the GPS function furthertracks location more precisely.
Screen Size4”, WVGA 800 X 480, Backlight (450nits)
Touch PanelMulti-touch panel, gloves and wet hands supported
Buttons / Keypad
Buttons / KeypadNumeric (32 keys); number keys, function and direction keys with backlight
Camera
CameraRear 13 MP Autofocus with flash
Indicator Type
TypeLED, Speaker, Vibrator
Barcode Scanner
Default2D Engine: Tilt Down 25 degree
Symbologies
1D BarcodesSupport all major 1D barcodes
2D BarcodesSupport all major 2D barcodes
RFID
UHF RFIDOptional
HF RFIDOptional: Frequency 13.56Mhz, ISO14443A/B,
ISO15693 standard, NFC, MIFARE, Felica
I/O Interfaces
USBUSB 2.0 (Type-C)
OTGYes, over USB Type-C
POGO PINPogo Pin Rear: Support Gun grip
Pogo Pin Bottom: Charging via cradle
Pogo Pin Rear: Support UHF Gun Grip (optional)
Expansion SlotMicroSD memory card up to 256G
AudioSpeaker: 1W output, 90 dB at 10cm
One microphone
Power Source
Main battery3.85V 5200mAh Li-ION battery (removable),
Operating time : over 20 hours
(depending on the specific environment)
Communication
Bluetooth®Bluetooth 5.0
WLAN802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, fast roaming, 2.4G+5GHz,
hotspot
GPSGPS/AGPS, GLONASS, BeiDou, Galileo
Software
MDM SoftwareSOTI, Ivanti, Wavelink, 42Gears, and MoboLink
Enclosure
Dimensions ( W x H x D )185 mm x 70 mm x 23.8 mm
Weight295g with battery
Durability
Drop Specification1.5m / 1.8m (with boot case)
SealingIP67
Tumble testTumble 600 times (1.6 ft./0.5 m)
Environmental
Operating temperature-20°C to 60°C
Storage temperature- 40°C to 70°C (without battery)
Charging temperature0°C to 45°C
Relative Humidity5% ~ 95% (non-condensing)

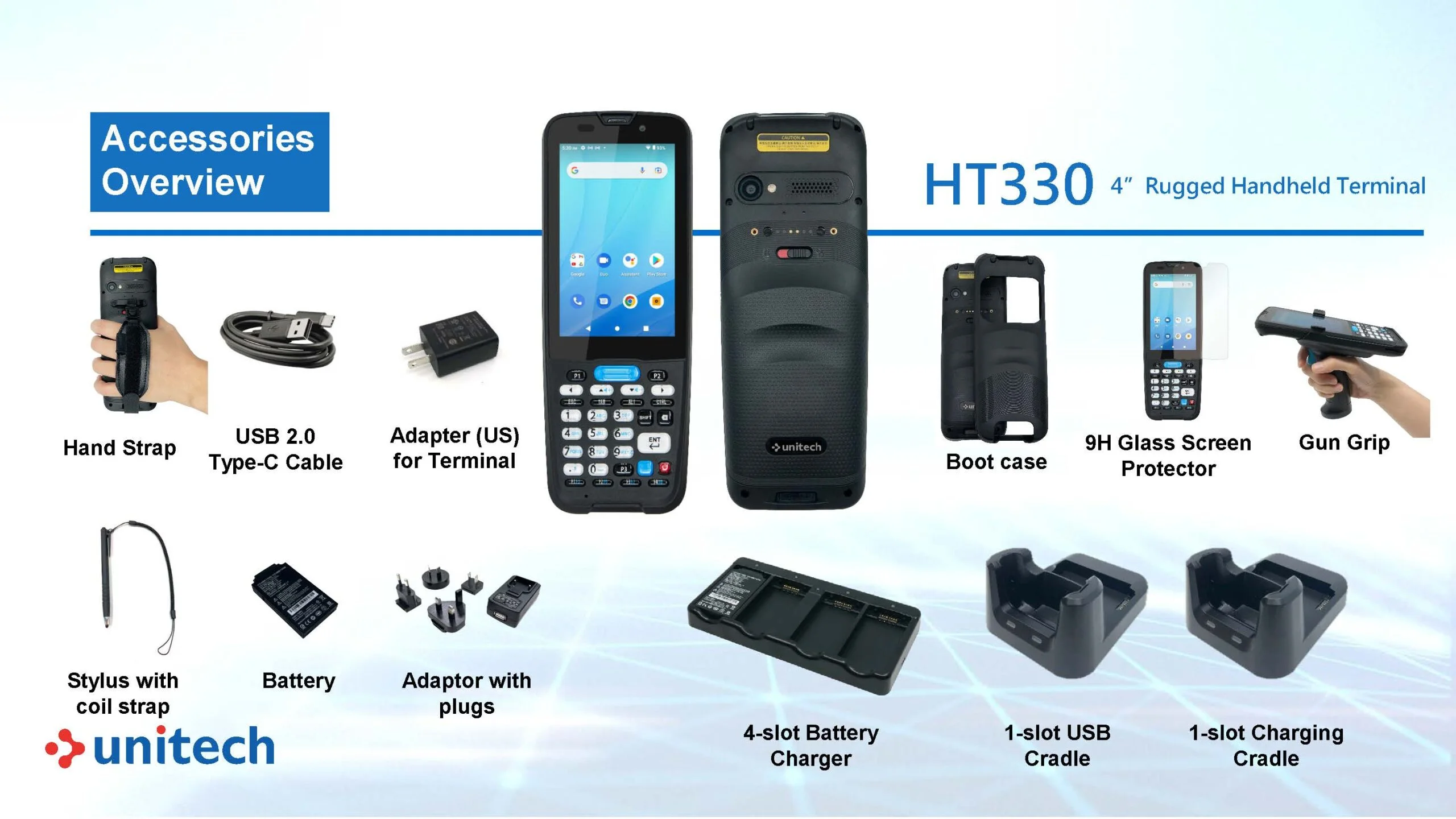

Accessories
Accessories■ 3.85V 5200mAh battery (PN#1400-900067G)
■ 5V/2A Adaptor with US plug for Terminal (PN#1010-900058G)
■ 5V/2A Adaptor with Universal plugs for Terminal (PN#1010-900067G)
■ USB Type C Cable (PN#1550-905919G)
■ Hand Strap (PN#386185G)
■ Boot Case(PN#3210-900035G)
■ Gun Grip (PN#5500-900100G)
■ Single Slot Charging Cradle (PN#5000-900098G)
■ Single Slot USB Cradle(PN#5000-900099G)
■ 4-slot Battery Charger (PN#5100-900035G)
■ 3 Pins Power Cord(US) for cradle (PN#1010-601551G)
■ 3 Pins Power Cord(EU) for cradle (PN#1550-602333G)
■ 3 Pins Power Cord(UK) for cradle (PN#1550-602689G)
■ Stylus with coil strap (PN#1979-900003G)
■ Glass Screen Protector (PN#401639G; PN#5400-900050G, 10pcs/ box)
■ Bracket only (without screws) (PN#386239G)
What comes in the box
The basic package contents■ HT330 Terminal
■ Battery
■ Hand Strap
■ USB Cable
■ Quick Start Guide
